BIOETHANOL PLANT/ ADANA, TURKEY

BIOETHANOL PLANT PROJECTS

Commencement	Completion	Project Name	Scope of the Project
2006	2007	BIOETHANOL PLANT/ ADANA, TURKEY FEED TYPE RING DRYER FABRICATION AND ERECTION	Within the scope of this project, in total 74 ton of SS equipment / gas ducts were fabricated and erected.
2006	2006	BIOETHANOL PLANT/ ADANA, TURKEY FABRICATION AND ERECTION WORKS	Within the scope of this project; 1 ea. BEER WELL TANK (Ø8915 x 16200mm , Total Weight: 51 ton) 1 ea. DILUTE CAUSTIC TANK (Ø4191 x 10955mm , Total Weight: 12 ton) 3 ea.FERMENTER TANK (Ø7772 x 16154mm , Total Weight: 38 ton/pc.) 1 ea.LIQUEFACTION TANK (Ø3353 x 8267mm , Total Weight: 9 ton) 1 ea.PROCESS CONDENSATE TANK (Ø6934 x 10990mm , Total Weight: 17 ton) 1 ea.SLURRY MIX TANK (Ø3210 x 9748mm , Total Weight: 7 ton) 1 ea.SULPHURIC ACID TANK (Ø2896 x 6618mm , Total Weight: 4 ton) 1 ea.SYRUP TANK (Ø6096 x 6465mm , Total Weight: 14 ton) 1 ea.THIN STILLAGE COLLECTION TANK (Ø1372 x 4000mm , Total Weight: 1 ton) 1 ea.THIN STILLAGE TANK (Ø5791 x 9633mm , Total Weight: 14 ton) 1 ea.WHOLE STILLAGE TANK (Ø7087 x 9821mm , Total Weight: 16 ton) 1 ea.YEAST MIX TANK (Ø1346 x 3980mm , Total Weight: 1 ton) 1 ea.YEAST PROPAGATION TANK (Ø4343 x 9508mm , Total Weight: 10 ton)with total weight of 270 ton, 15 units of SA-240 Gr.304L stainless steel storage tanks in 13 different types were fabricated to be used at the Bioethanol Plant. SIMGETEK' s scope of works comprises of design calculations in accordance with API 650, detailed engineering, preparation of fabrication drawings, supply of the carbon steel materials which are used for tank accesories (stainless steel materials are supplied by the customer), fabrication, site erection and tests. In addition to aforementioned works,pipe fabrication and installation works between the subject tanks and ready to use equipment (pump, compressor, etc.) supplied by the customer were also carried out within the scope of SIMETEK.

Commencement

Completion

Project Name

Scope of the Project

2006

2007

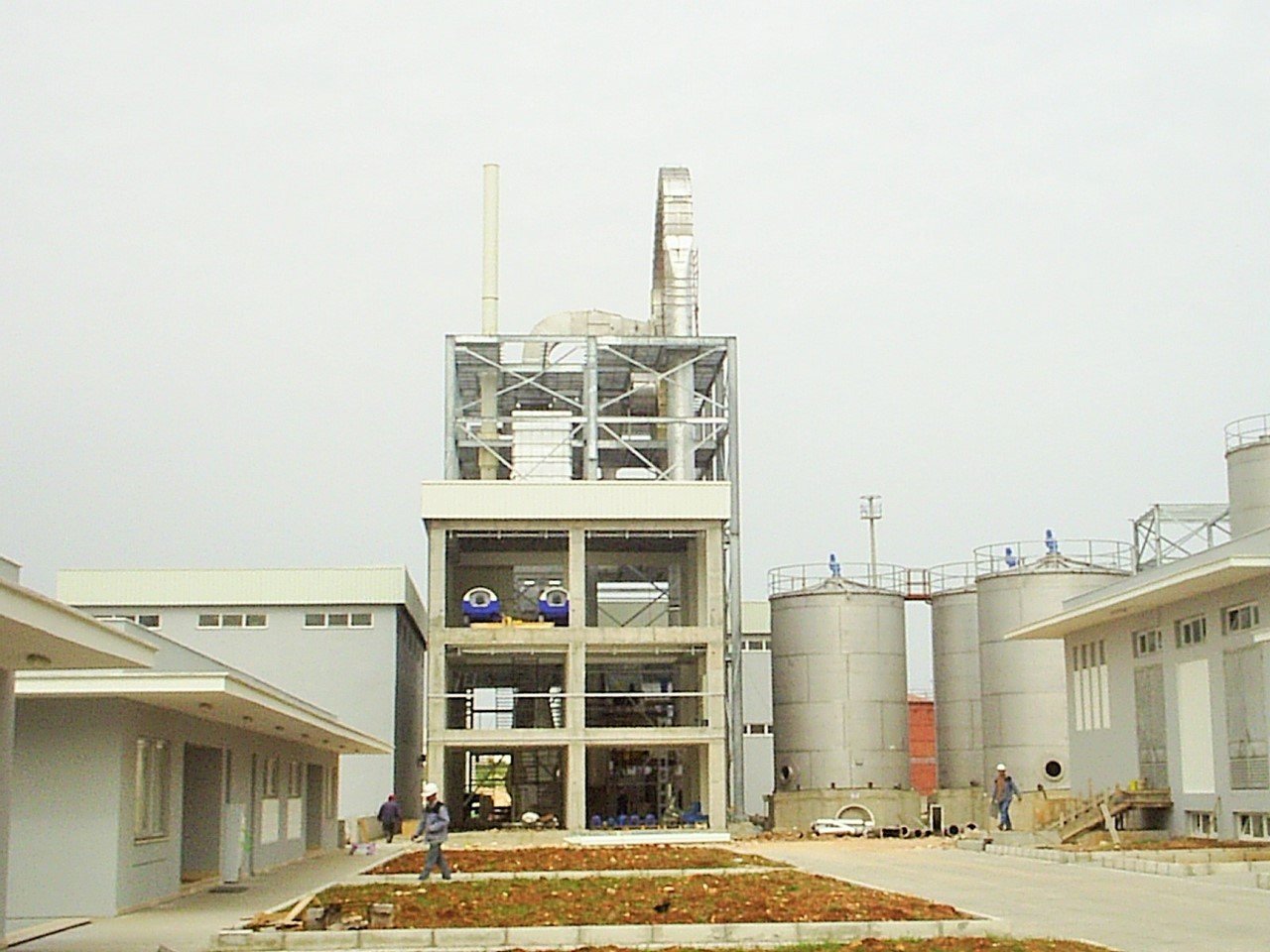

BIOETHANOL PLANT/ ADANA, TURKEY

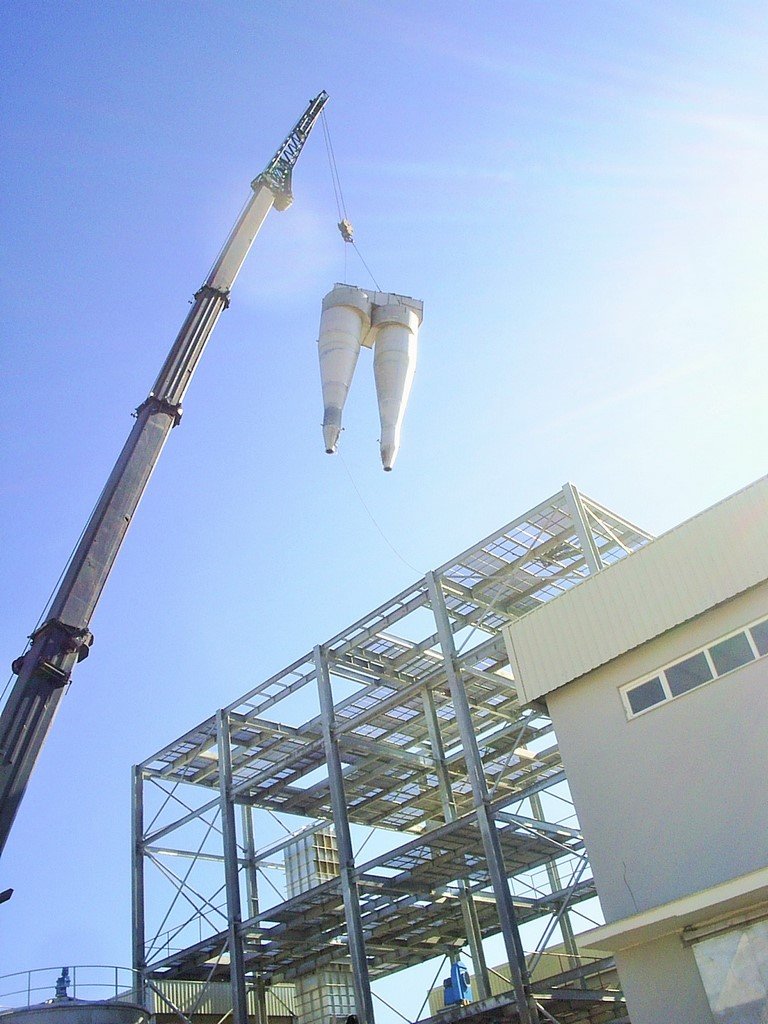

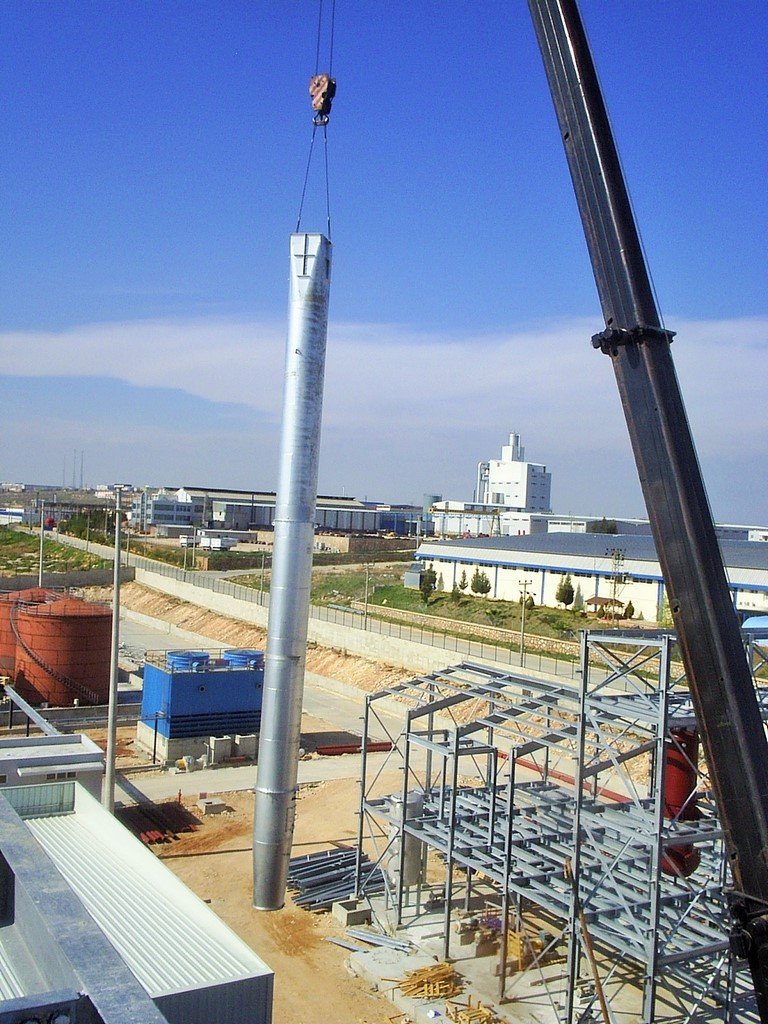

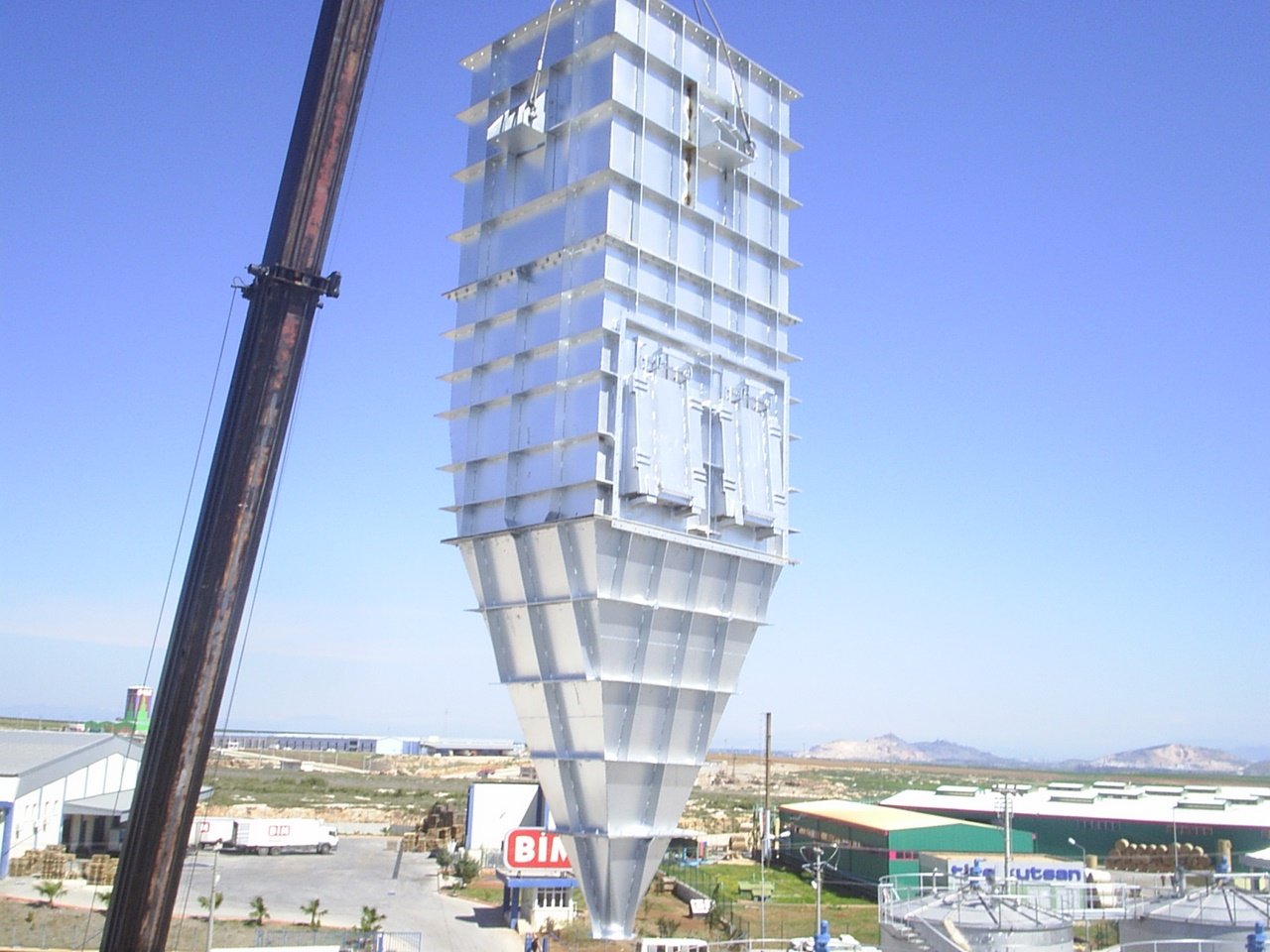

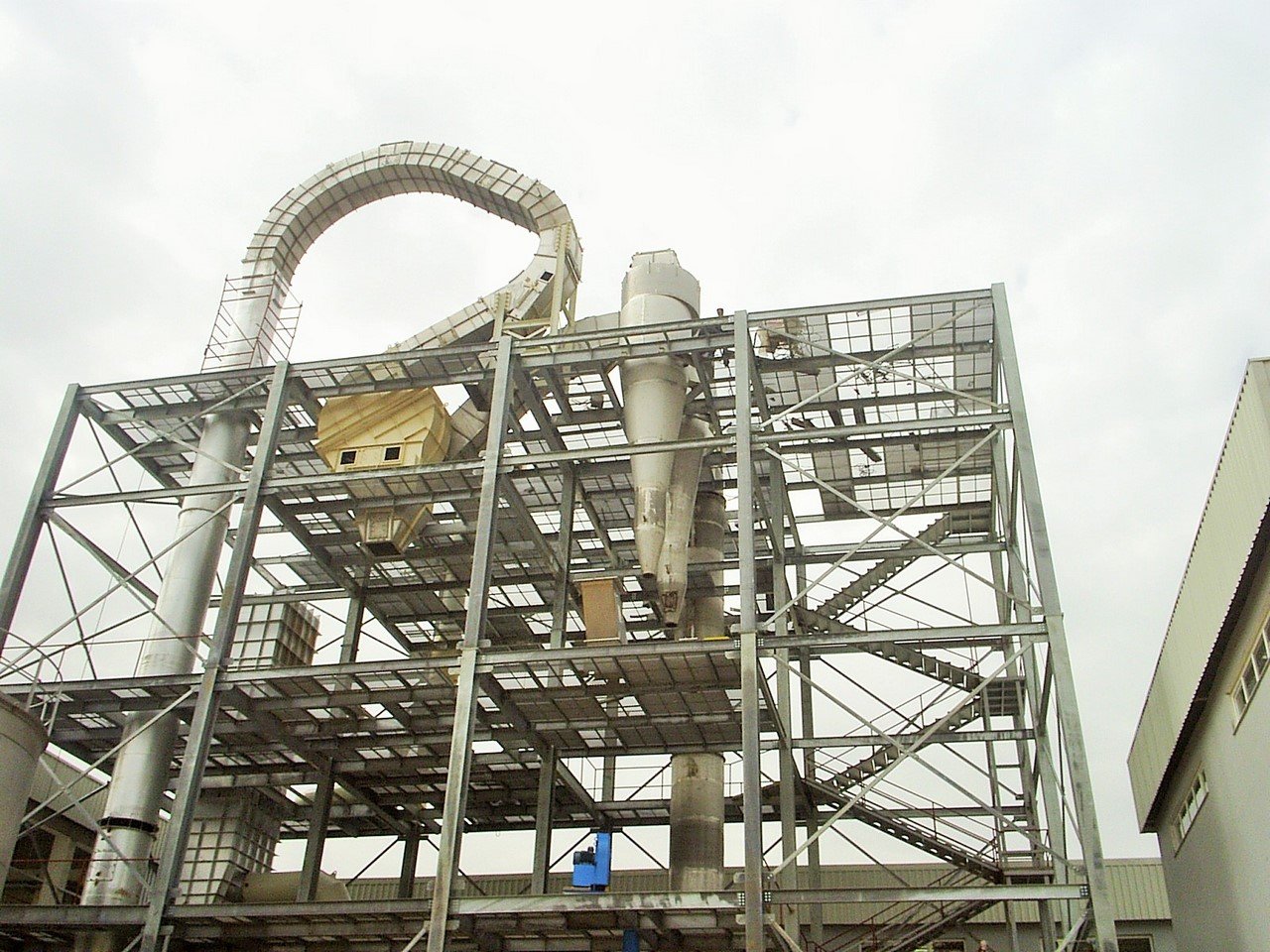

FEED TYPE RING DRYER FABRICATION AND ERECTION

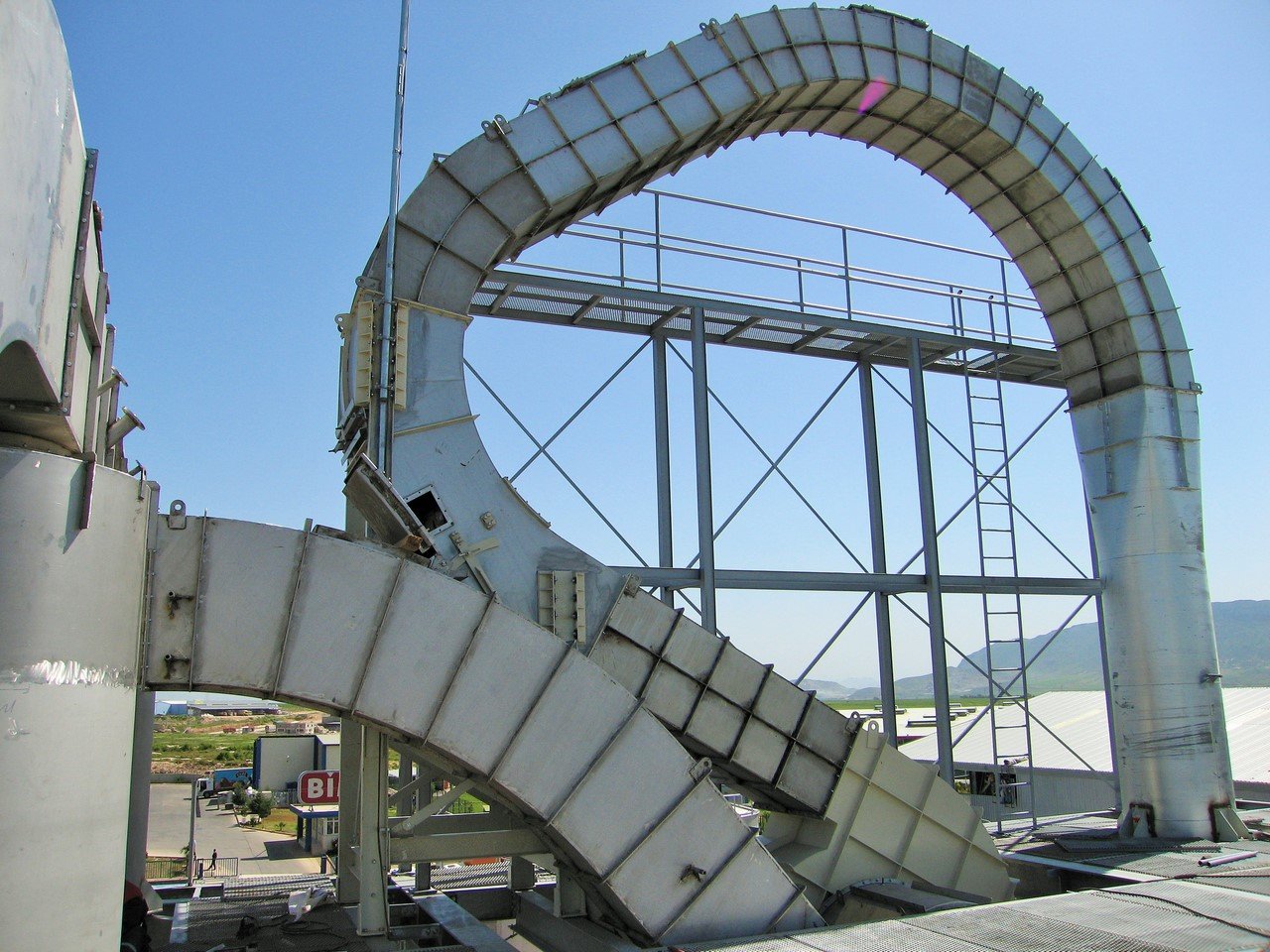

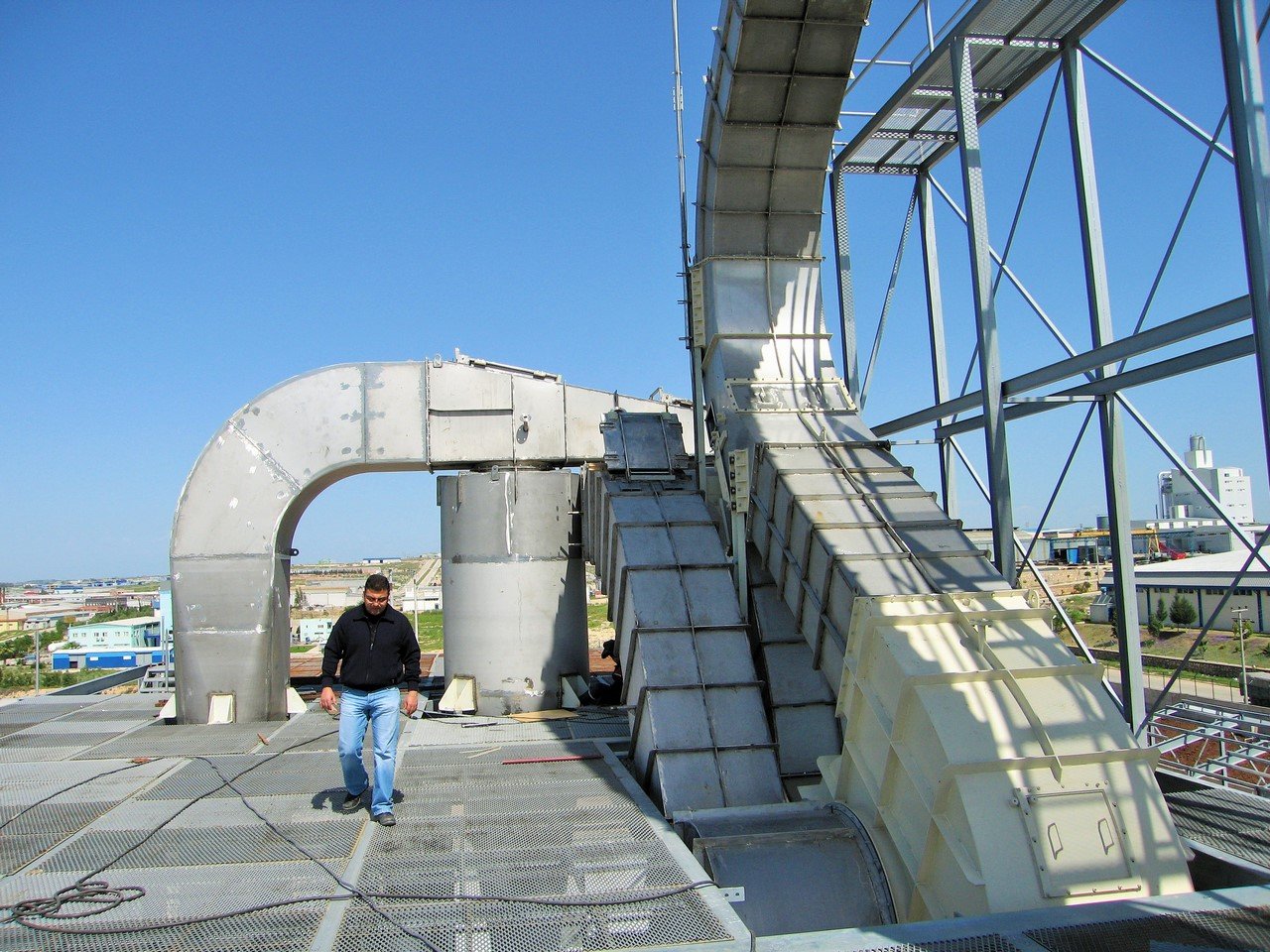

Within the scope of this project, in total 74 ton of SS equipment / gas ducts were fabricated and erected.

2006

BIOETHANOL PLANT/ ADANA, TURKEY
FABRICATION AND ERECTION WORKS

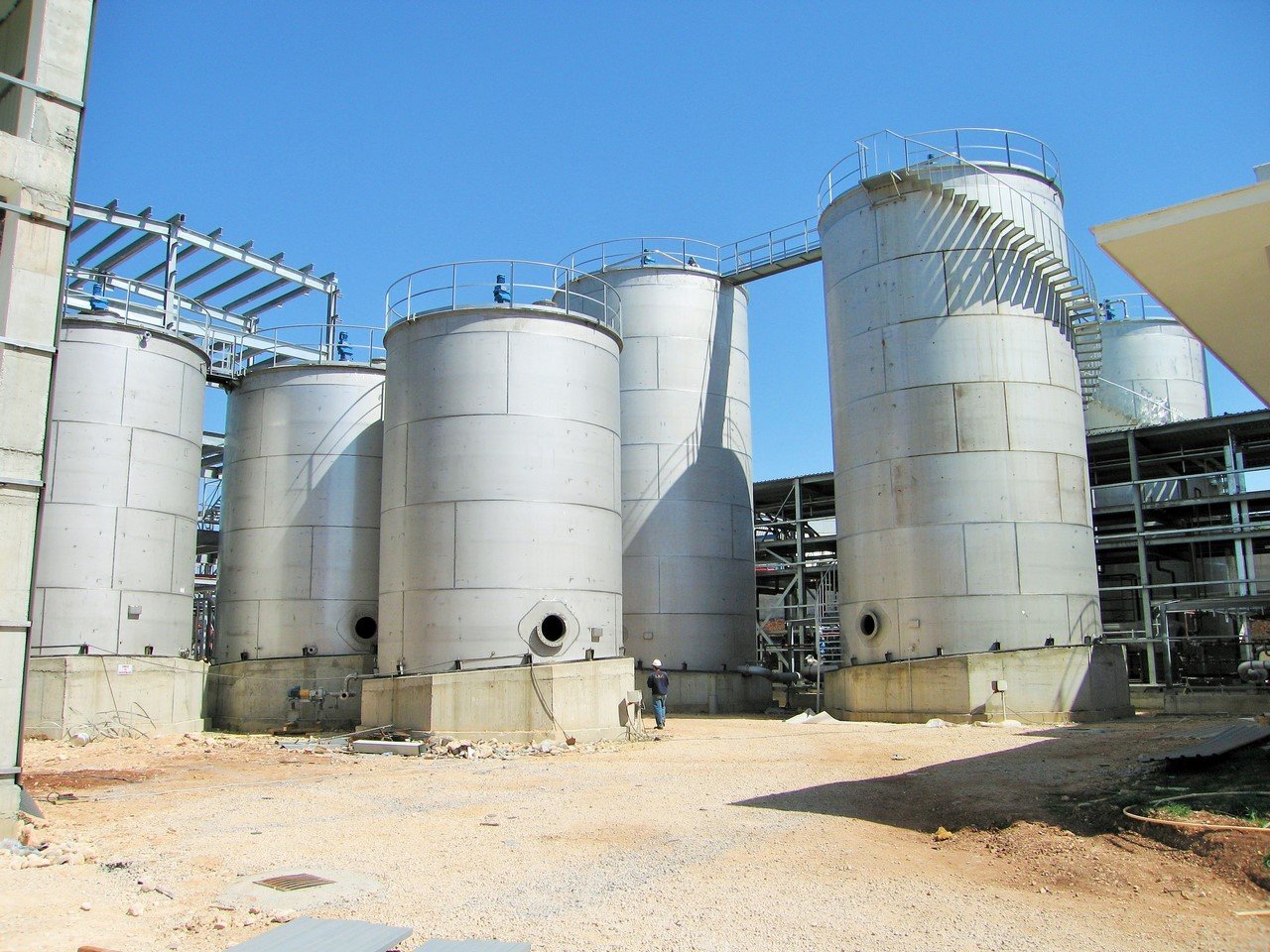

Within the scope of this project;

1 ea. BEER WELL TANK (Ø8915 x 16200mm , Total Weight: 51 ton)
1 ea. DILUTE CAUSTIC TANK (Ø4191 x 10955mm , Total Weight: 12 ton)
3 ea.FERMENTER TANK (Ø7772 x 16154mm , Total Weight: 38 ton/pc.)
1 ea.LIQUEFACTION TANK (Ø3353 x 8267mm , Total Weight: 9 ton)
1 ea.PROCESS CONDENSATE TANK (Ø6934 x 10990mm , Total Weight: 17 ton)
1 ea.SLURRY MIX TANK (Ø3210 x 9748mm , Total Weight: 7 ton)
1 ea.SULPHURIC ACID TANK (Ø2896 x 6618mm , Total Weight: 4 ton)
1 ea.SYRUP TANK (Ø6096 x 6465mm , Total Weight: 14 ton)
1 ea.THIN STILLAGE COLLECTION TANK (Ø1372 x 4000mm , Total Weight: 1 ton)
1 ea.THIN STILLAGE TANK (Ø5791 x 9633mm , Total Weight: 14 ton)
1 ea.WHOLE STILLAGE TANK (Ø7087 x 9821mm , Total Weight: 16 ton)
1 ea.YEAST MIX TANK (Ø1346 x 3980mm , Total Weight: 1 ton)
1 ea.YEAST PROPAGATION TANK (Ø4343 x 9508mm , Total Weight: 10 ton)with total weight of 270 ton, 15 units of SA-240 Gr.304L stainless steel storage tanks in 13 different types were fabricated to be used at the Bioethanol Plant.

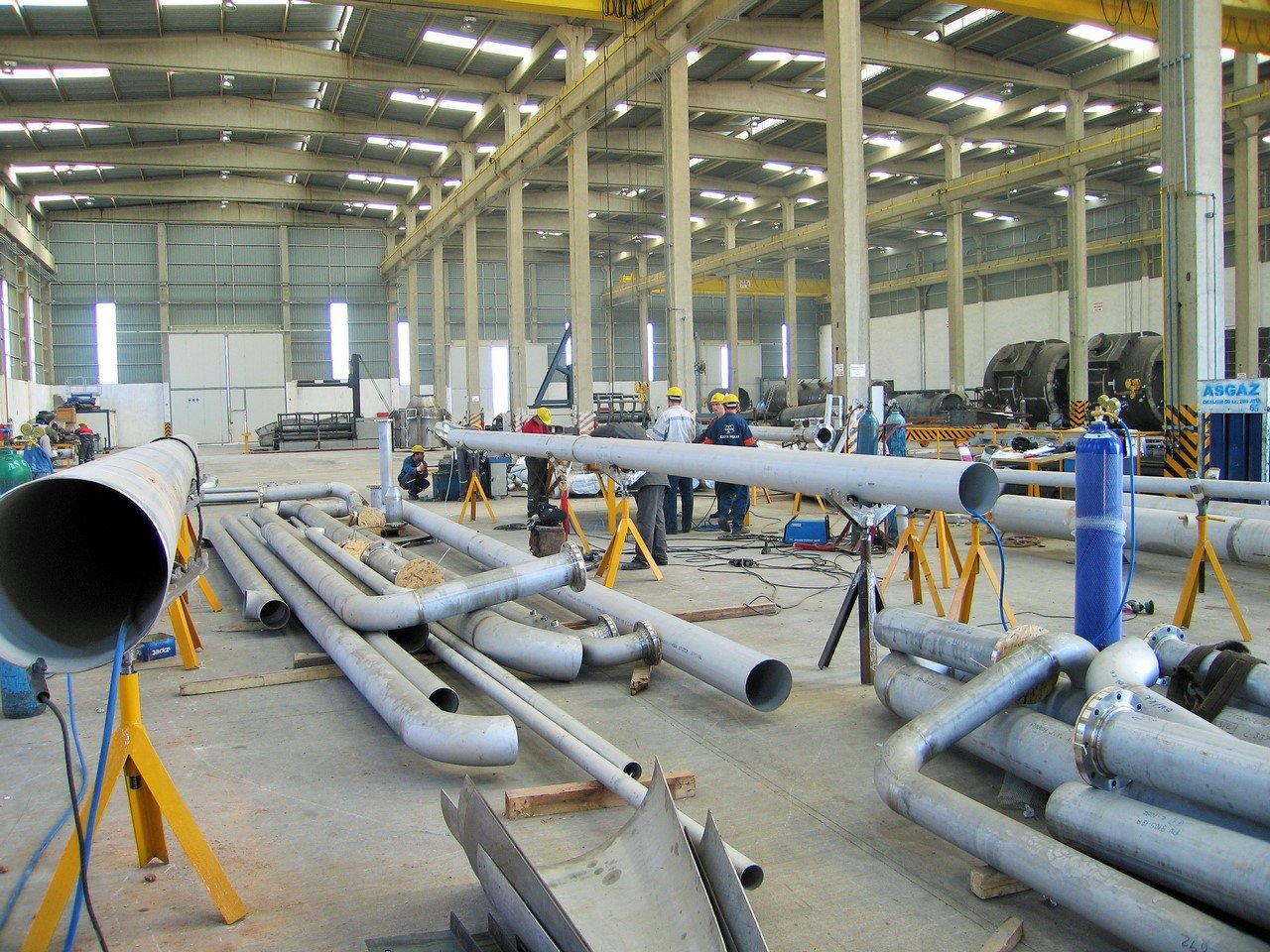

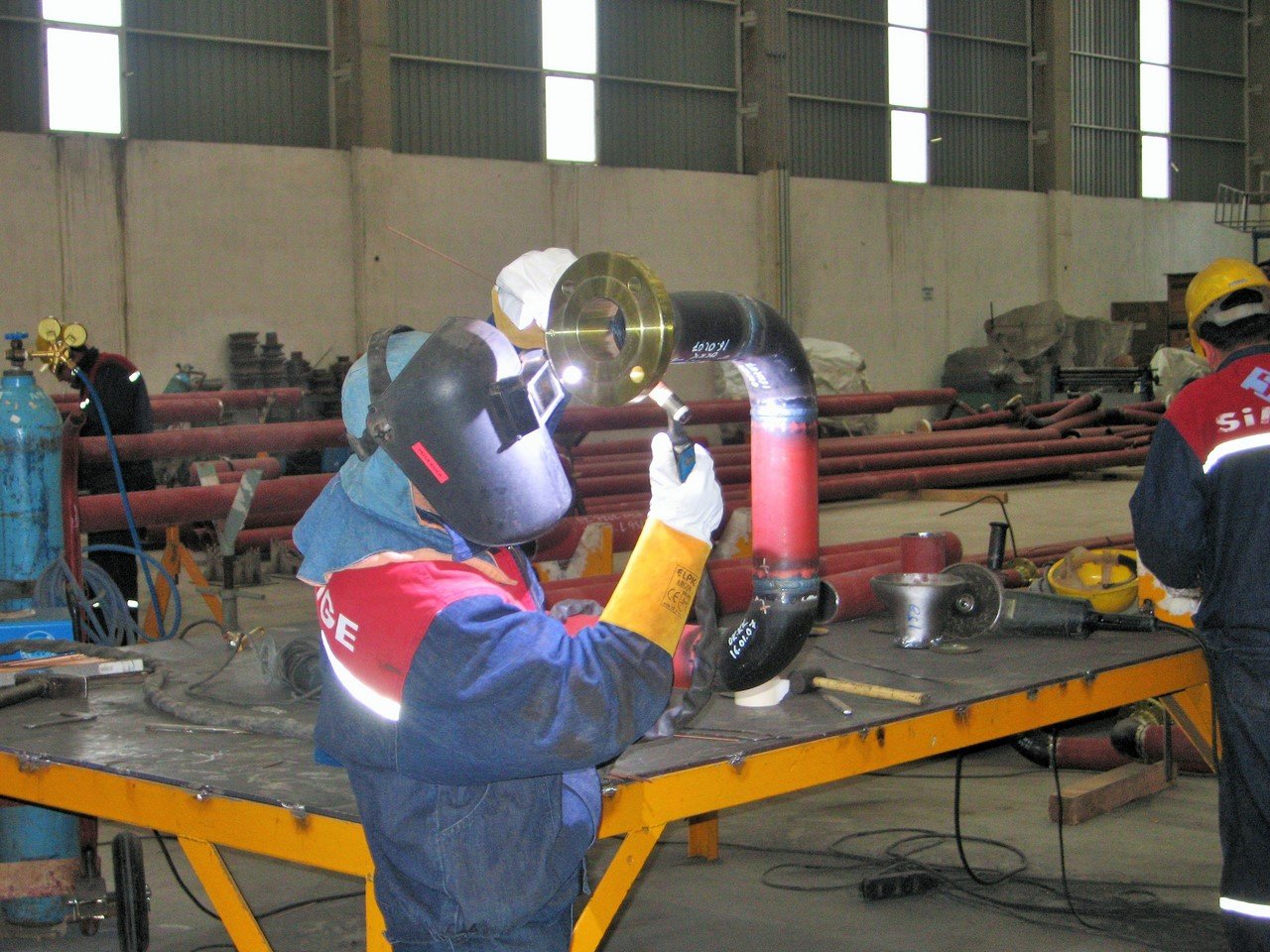

SIMGETEK' s scope of works comprises of design calculations in accordance with API 650, detailed engineering, preparation of fabrication drawings, supply of the carbon steel materials which are used for tank accesories (stainless steel materials are supplied by the customer), fabrication, site erection and tests. In addition to aforementioned works,pipe fabrication and installation works between the subject tanks and ready to use equipment (pump, compressor, etc.) supplied by the customer were also carried out within the scope of SIMETEK.
